CPCD-20

Rated load:2000KG
Rated power:40KW
Lifting height:3000mm

Application


1,Forklift is a special equipment that can transport goods horizontally and vertically.It has comprehensive functions such as loading and unloading,lifting and transportation.

2,Forklift is widely used in mining sites, warehouses, stations, ports, airports, freight yards, circulation centers and logistics distribution centers and other industries, and even some can enter the cabin, carriage and container.

3,Forklift can load and unload parts, packaging parts, pallets, containers and other objects, stacking, short-distance handling and so on. Because it can carry different accessories, it is also widely used in road transportation, railway transportation, water transportation, and material storage and transportation, postal applications, so the range of use of forklift is very large.

Введение

DETAILS

Резюме

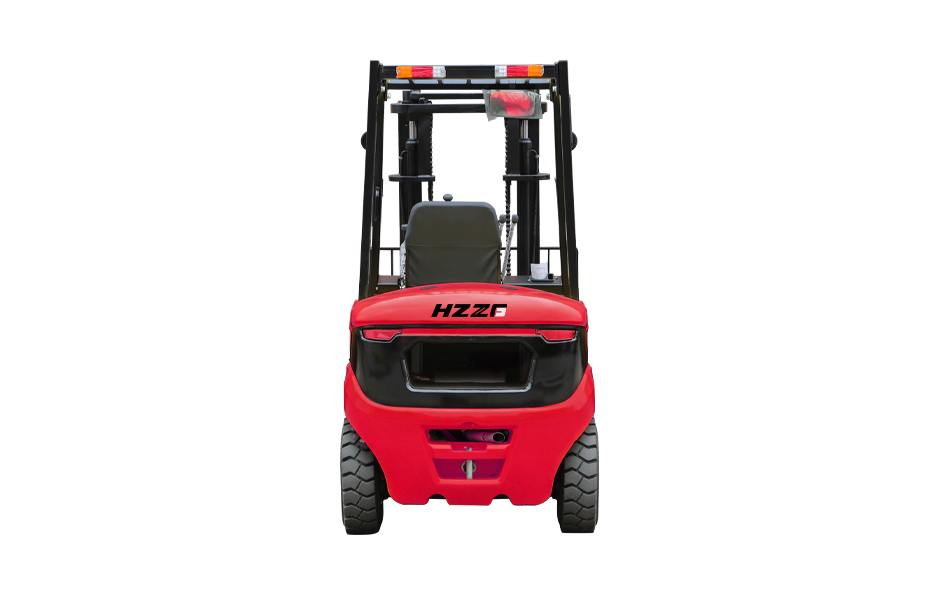

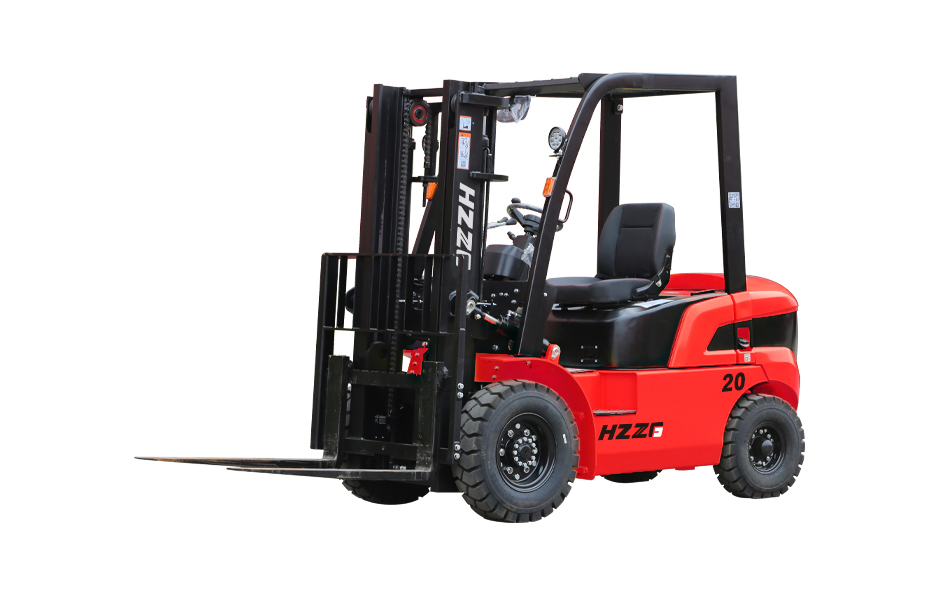

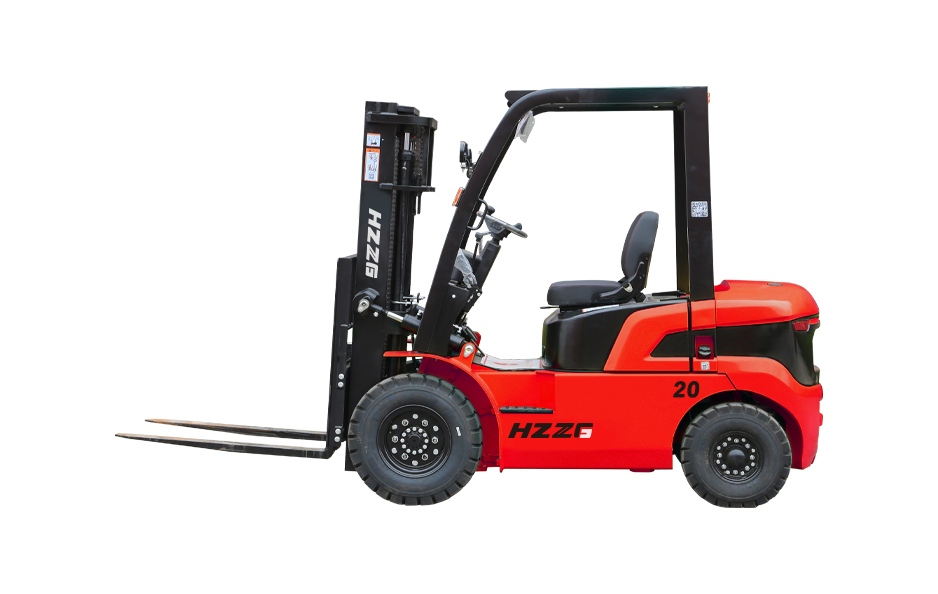

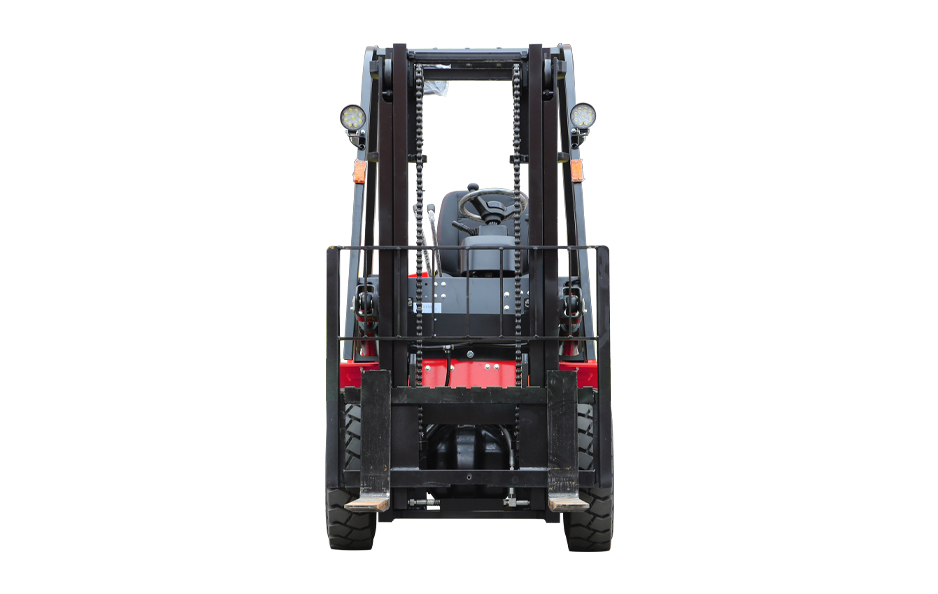

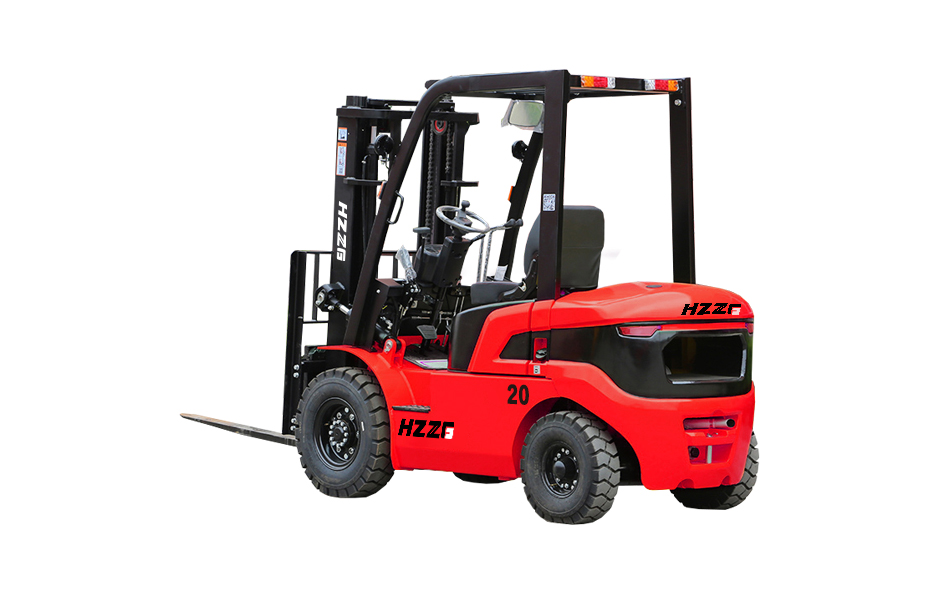

This 2.0-ton diesel forklift is designed for efficient indoor and outdoor material handling.

Equipped with a high-performance diesel engine, it provides superior torque and stable power output, ensuring excellent performance during high-intensity operations.

Featuring a reliable power system, a comfortable operating environment, and a robust safety structure, it fully complies with CE and international standards. This model is characterized by low fuel consumption, powerful performance, easy maintenance, and a long service life, making it the ideal choice for warehouses, logistics, factories, and outdoor work sites.

We also offer various optional features, such as more efficient engines, fully enclosed cabs, and air conditioning systems. Additionally, different attachments can be customized to meet your specific needs. Whatever your requirements, we can deliver!

Technical Data

General 1 Модель   CPC 20/CPCD 20
2 Rated Load Capacity кг 2000
3 Loader Center мм 500
Dimensions 4 Lifting Height мм 3000
5 Free lifting Height мм 120
6 Fork Size LxWxT мм 1070×122×40
7 Mast Tilting Angle F/R    6/12
8 Length(without fork) мм 2500
9 Overall Width мм 1164
10 Mast Hight After Mast Fall мм 2000
11 Lift Height мм 4000
12 Overhead Guard Height мм 2150
13 Turning Radius мм 2190
14 Front /back Overhang мм 455
15 Min.Right Angle Channel Width мм 2230
16 Wheelbase мм 1600
17 Track Front мм 970
18 Rear мм 970
19 Ground Clearance Mast мм 115
20 Car Center мм 170
Tire 21 Front Tire   7.00-12-12PR
22 Rear Tire   6.00-9-10PR
Performance 23 Speed Travel Full Load km/h 17
24 No load km/h 19.5
25 Lifting Full Load mm/s 530
26 No load mm/s 550
27 Lowering Full Load mm/s 450
28 No load mm/s 550
29 Max.Drawbar Pull Full/No Load кг 1250/850
30 Max.Gradeability Full/No Load % 20/20
Weight 31 Total Weight кг 3320
Pover&Transmission 32 Батарея Voltage/Capacity V/AH 12/100
33 Двигатель Модель   XINCHAI C490BPG
34 Rated Pover/Speed Kw/rpm 40/2650
35 Max.Torque/Speed N.m/rpm 157/1800
36 Work Pressure Mpa 17.5
37 Fuel Tank Capacity L 60
38 Transmission Type   Mechanical/Automatic
