CPCD-25M

Rated load:2500KG
Rated power:40KW
Lifting height:3000mm

Application


1,Forklift is a special equipment that can transport goods horizontally and vertically.It has comprehensive functions such as loading and unloading,lifting and transportation.

2,Forklift is widely used in mining sites, warehouses, stations, ports, airports, freight yards, circulation centers and logistics distribution centers and other industries, and even some can enter the cabin, carriage and container.

3,Forklift can load and unload parts, packaging parts, pallets, containers and other objects, stacking, short-distance handling and so on. Because it can carry different accessories, it is also widely used in road transportation, railway transportation, water transportation, and material storage and transportation, postal applications, so the range of use of forklift is very large.

Introduction

DETAILS

Résumé

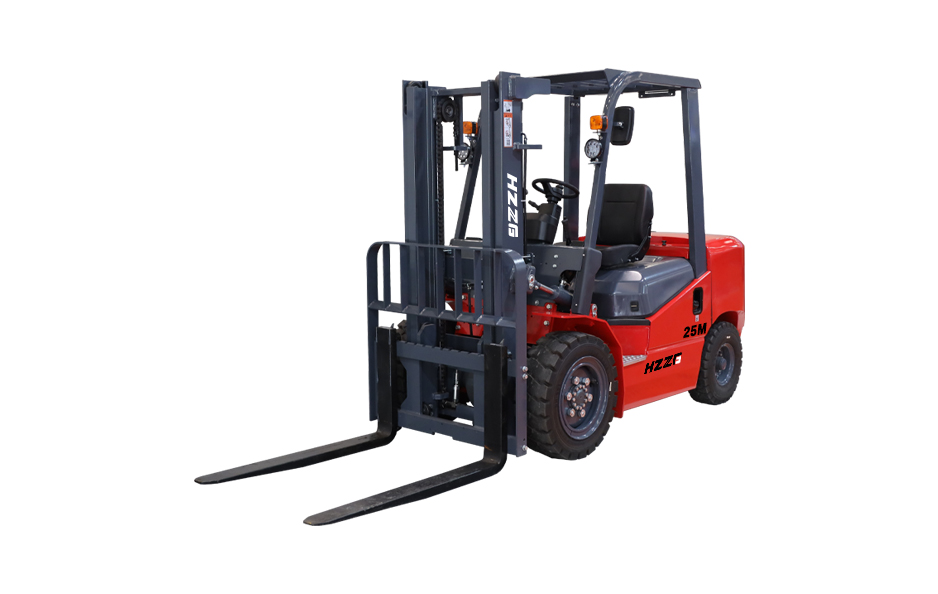

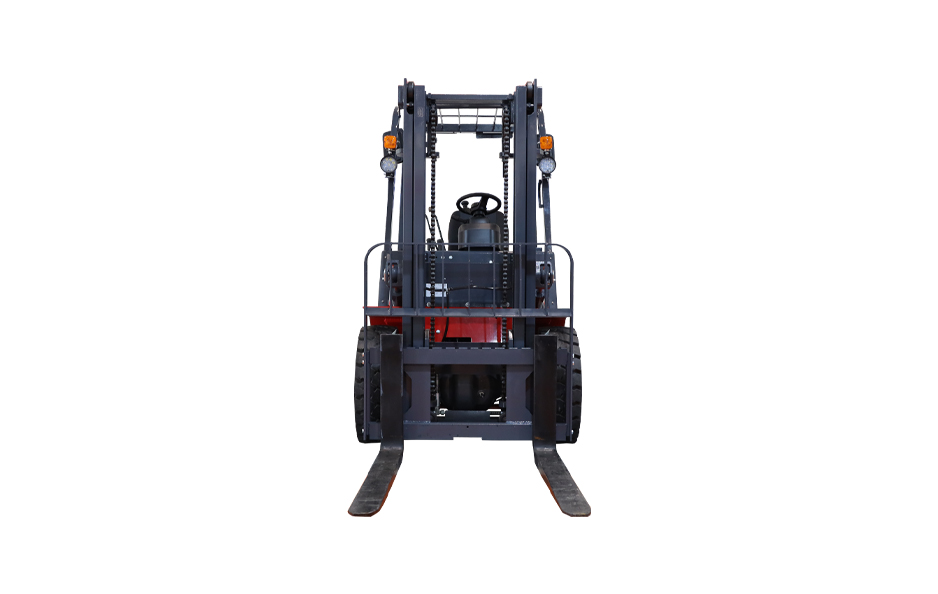

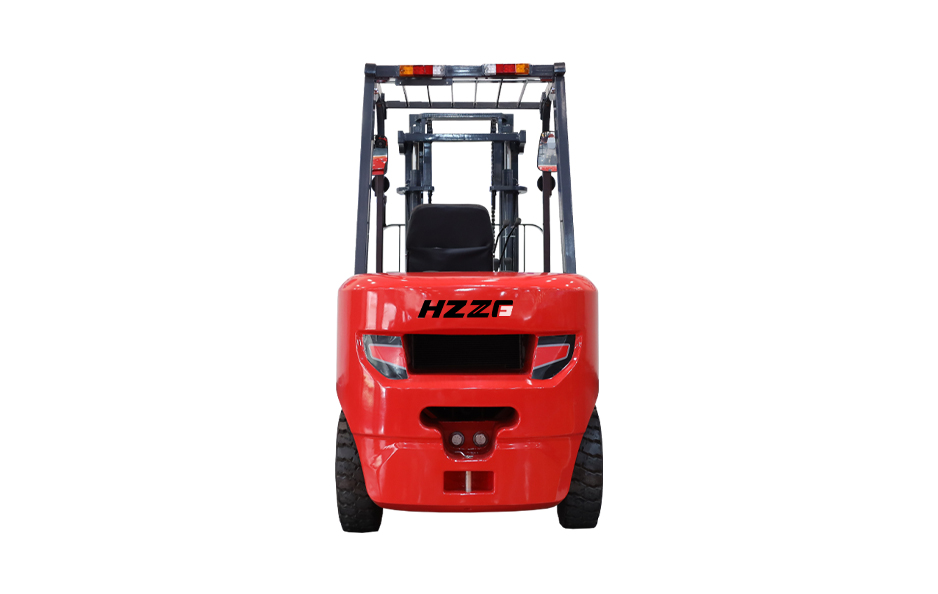

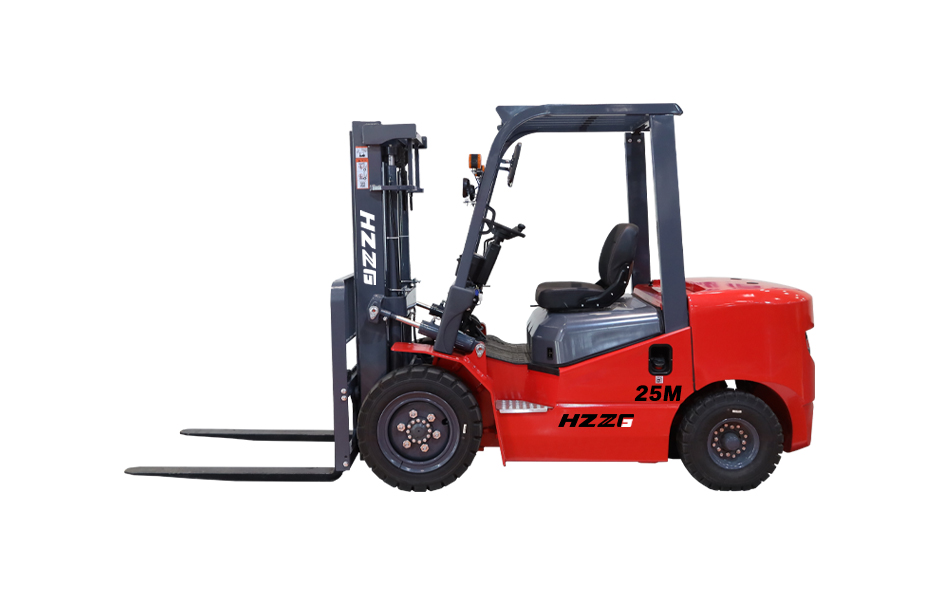

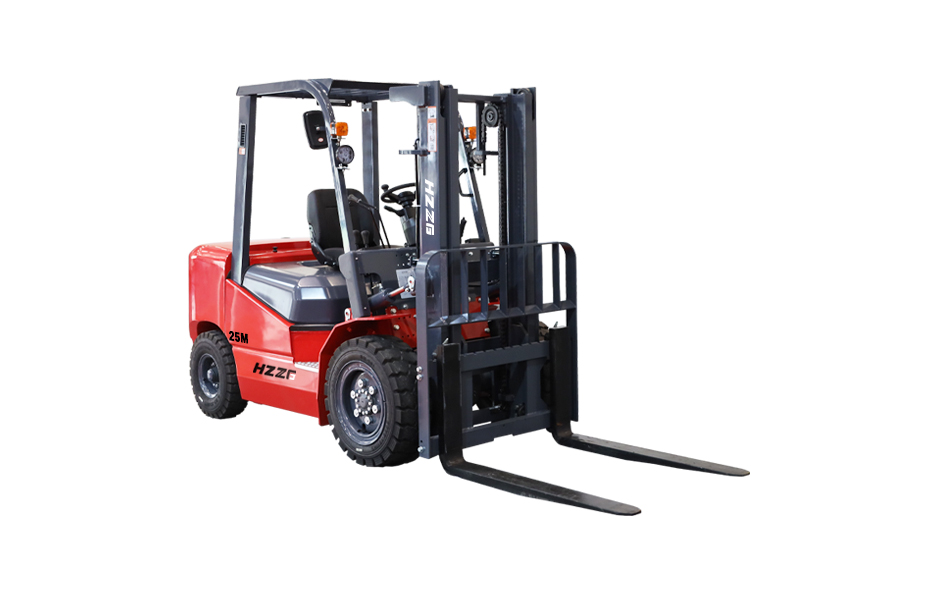

This 2.5-ton diesel forklift is designed for efficient indoor and outdoor material handling.

Equipped with a high-performance diesel engine, it provides superior torque and stable power output, ensuring excellent performance during high-intensity operations.

Featuring a reliable power system, a comfortable operating environment, and a robust safety structure, it fully complies with CE and international standards. This model is characterized by low fuel consumption, powerful performance, easy maintenance, and a long service life, making it the ideal choice for warehouses, logistics, factories, and outdoor work sites.

We also offer various optional features, such as more efficient engines, fully enclosed cabs, and air conditioning systems. Additionally, different attachments can be customized to meet your specific needs. Whatever your requirements, we can deliver!

Technical Data

General Modèle   CPC25M/CPCD25M
Rated Load Capacity kilogrammes 2500
Loader Center mm 500
Dimensions Lifting Height mm 3000
Free lifting Height mm 135
Fork Size LxWxT mm 1070×120×45
Mast Tilting Angle F/R deg 6/12
Length (without fork) mm 2665
Overall Width mm 1170
10  Mast Hight After Mast Fall mm 2000
11  Lift Height mm 4010
12  Overhead Guard Height mm 2130
13  Turning Radius mm 2450
14  Front /back Overhang mm 455/560
15  Min.Right Angle Channel Width mm 2430
16  Wheelbase mm 1650
17  Track Front mm 1000
18  Rear mm 970
19  Ground Clearance Mast mm 115
20  Car Center mm 130
Performance 21  Speed Travel Full Load km/h 17
22  No load km/h 19
23  Lifting Full Load mm/s 500
24  No load mm/s 530
27  Max.Drawbar Pull Full/No Load kilogrammes 1800/1500
28  Max.Gradeability Full/No Load % 20/20
Weight 29  Total Weight kilogrammes 3650
Pover&Transmission 30  Batterie Voltage/Capacity V/AH 12/80
31  moteur Modèle   XINCHAI C490BPG
32  Rated Pover/Speed Kw/rpm 36.8/2500
33  Max.Torque/Speed N.m/rpm 165/1600~1800
  34  Work Pressure Mpa 17.5
