LPG Dual Fuel Forklift Sale
casa Producto CPY-20

CPY-20

Rated load:2000KG
Rated power:29KW
Lifting height:3000mm

Application


1,Forklift is a special equipment that can transport goods horizontally and vertically.It has comprehensive functions such as loading and unloading,lifting and transportation.

2,Forklift is widely used in mining sites, warehouses, stations, ports, airports, freight yards, circulation centers and logistics distribution centers and other industries, and even some can enter the cabin, carriage and container.

3,Forklift can load and unload parts, packaging parts, pallets, containers and other objects, stacking, short-distance handling and so on. Because it can carry different accessories, it is also widely used in road transportation, railway transportation, water transportation, and material storage and transportation, postal applications, so the range of use of forklift is very large.

Introducción

DETAILS

Resumen

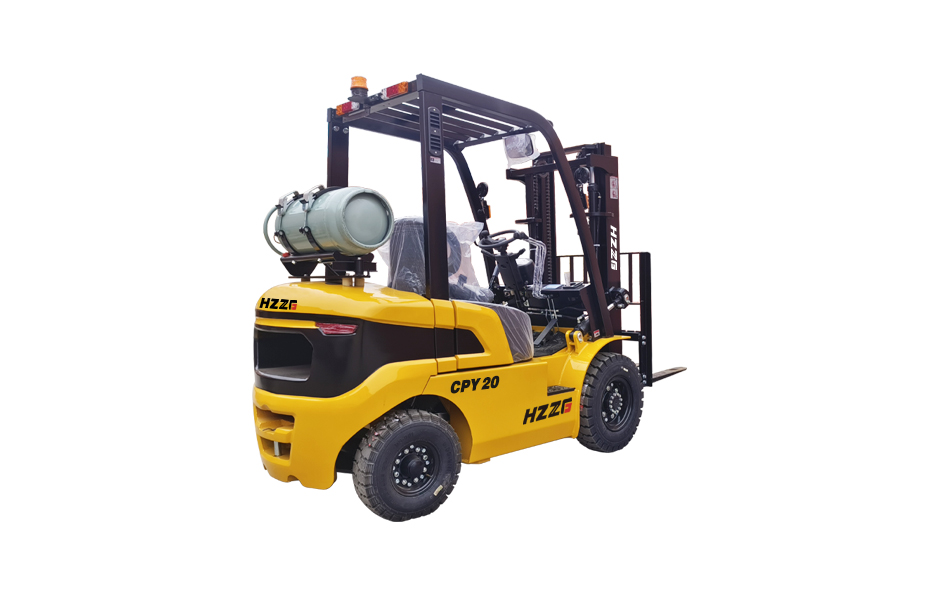

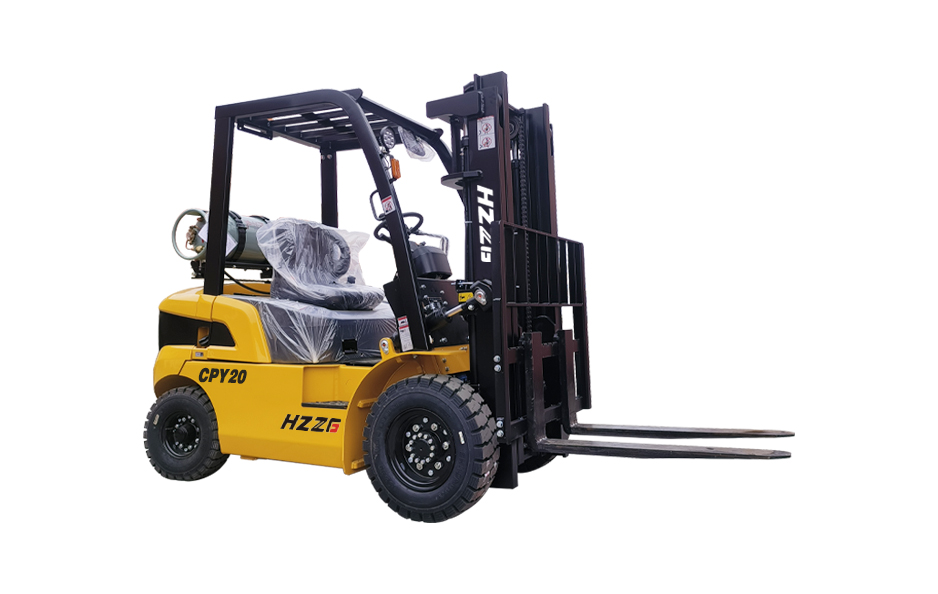

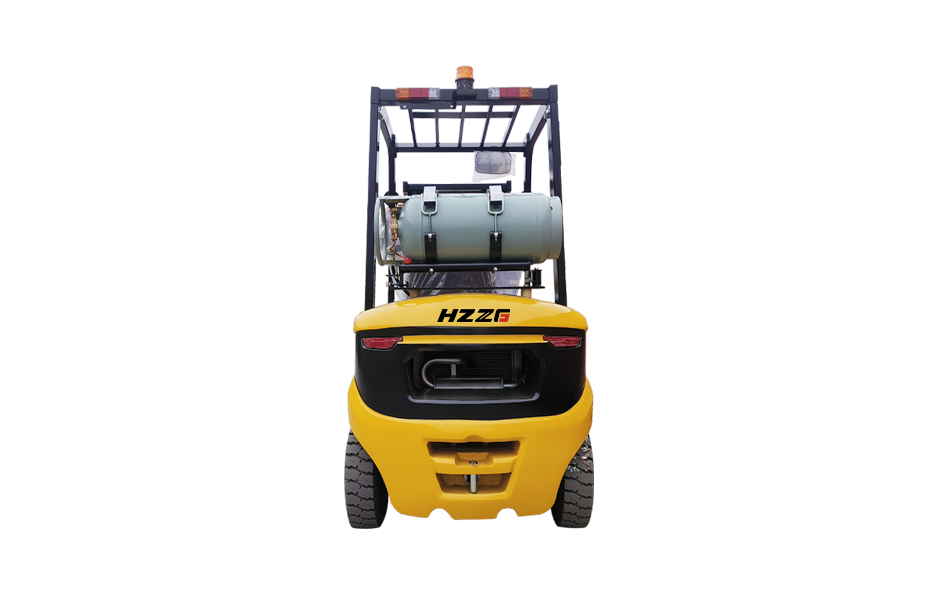

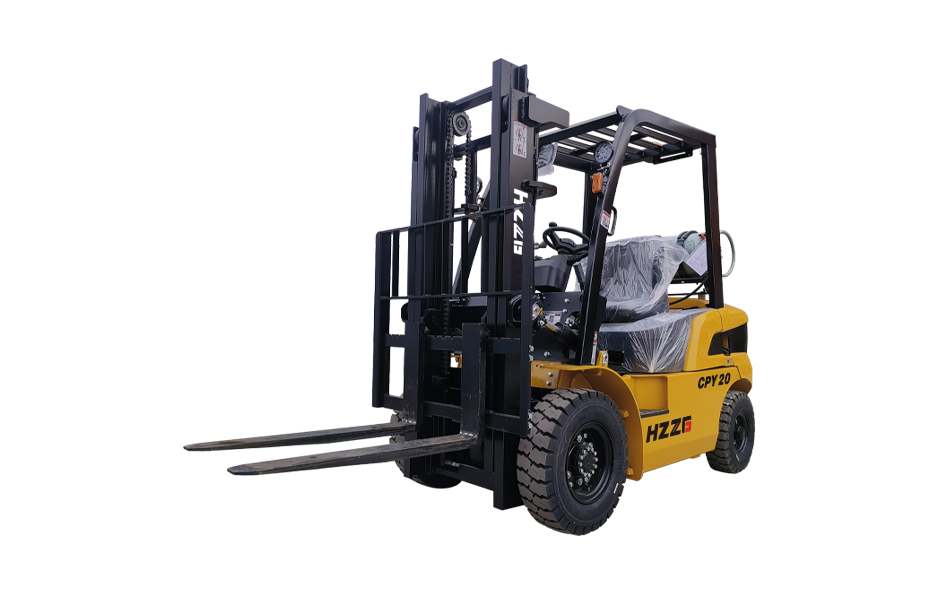

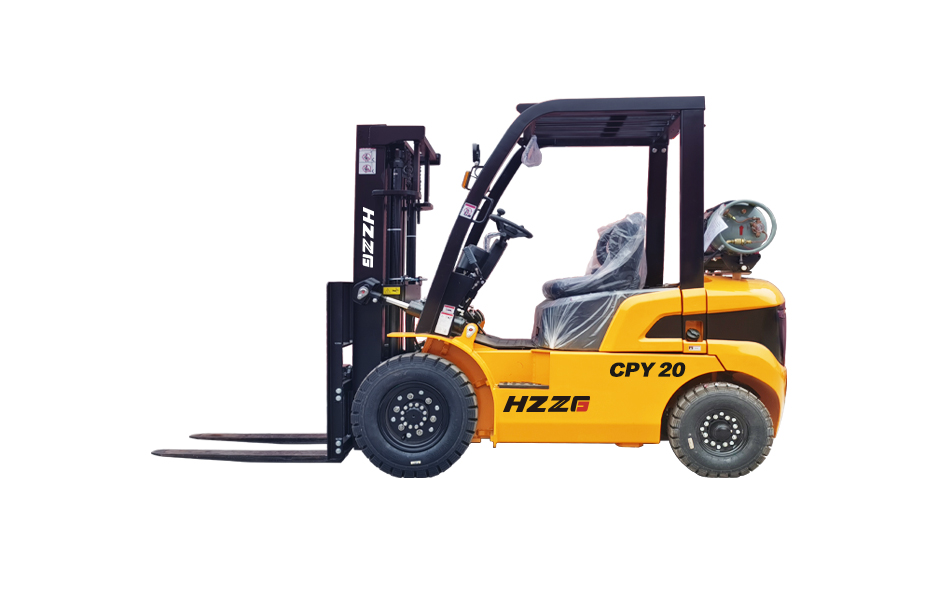

2 Ton LPG Dual Fuel Forklift Introduction

This 2-ton LPG dual fuel forklift is designed for efficient indoor and outdoor material handling.

It can switch freely between LPG and gasoline, ensuring stable power and continuous operation.

Equipped with a reliable engine, comfortable operation system and strong safety structure, it meets CE and international standards. The forklift features low emissions, low noise, easy maintenance and long service life, ideal for warehouses, logistics, factories and outdoor working sites.

We also offer optional features such as a more efficient engine, a fully enclosed cab, and air conditioning. Different attachments can also be customized to meet your needs. Whatever your requirements, we can achieve them!

Technical Data

  QINGDAO HEZHONG MACHINERY MANUFACTURING CO.,LTD
www.hezhongmachinery.com
General 1 modelo   CPY-20
2 Rated Load Capacity kilogramos 2000
3 Load Center mm (mm) 500
Dimensions 4 Lifting Height mm (mm) 3000
5 Free lifting Height mm (mm) 115
6 Fork Size LxWxT mm (mm) 1070×122×40
7 Mast Tilting Angle F/R    6/12
8 Length (without fork) mm (mm) 2500
9 Overall Width mm (mm) 1164
10 Mast Height After Mast Fall mm (mm) 2000
11 Lift Height mm (mm) 4000
12 Overhead Guard Height mm (mm) 2150
13 Turning Radius mm (mm) 2190
14 Front /back Overhang mm (mm) 455
15 Min. Right Angle Stacking Width mm (mm) 2230
16 Wheelbase mm (mm) 1600
17 Track Front mm (mm) 970
18 Rear mm (mm) 970
19 Ground Clearance Mast mm (mm) 115
20 Car Center mm (mm) 170
Tire 21 Front Tire   7.00-12-12PR
22 Rear Tire   6.00-9-10PR
Performance 23 Speed Travel Full Load km/h 17
24 No load km/h 19
25 Lifting Full Load mm/s 530
26 No load mm/s 550
27 Lowering Full Load mm/s 550
28 No load mm/s 450
29 Max.Drawbar Pull Full/No Load kilogramos 1250/850
30 Max.Gradeability Full/No Load % 20/20
Weight 31 Total Weight kilogramos 3360
Power&Transmission 32 Batería Voltage/Capacity V/AH 12/100
33 Motor modelo   GCT GK21
34 Rated Power/Speed Kw/rpm 29/2500
35 Max.Torque/Speed N.m/rpm 157/1800
36 Work Pressure Mpa 17.5
37 Fuel Tank Capacity L 60
38 Transmission Type   Automatic
