Electric Forklift For Sale
casa Producto CPD-25D

CPD-25D

Rated load:2500KG
Battery capacity:76.8V/280AH
Lifting height:3000mm

Application


1,Forklift is a special equipment that can transport goods horizontally and vertically.It has comprehensive functions such as loading and unloading,lifting and transportation.

2,Forklift is widely used in mining sites, warehouses, stations, ports, airports, freight yards, circulation centers and logistics distribution centers and other industries, and even some can enter the cabin, carriage and container.

3,Forklift can load and unload parts, packaging parts, pallets, containers and other objects, stacking, short-distance handling and so on. Because it can carry different accessories, it is also widely used in road transportation, railway transportation, water transportation, and material storage and transportation, postal applications, so the range of use of forklift is very large.

Introducción

DETAILS

Resumen

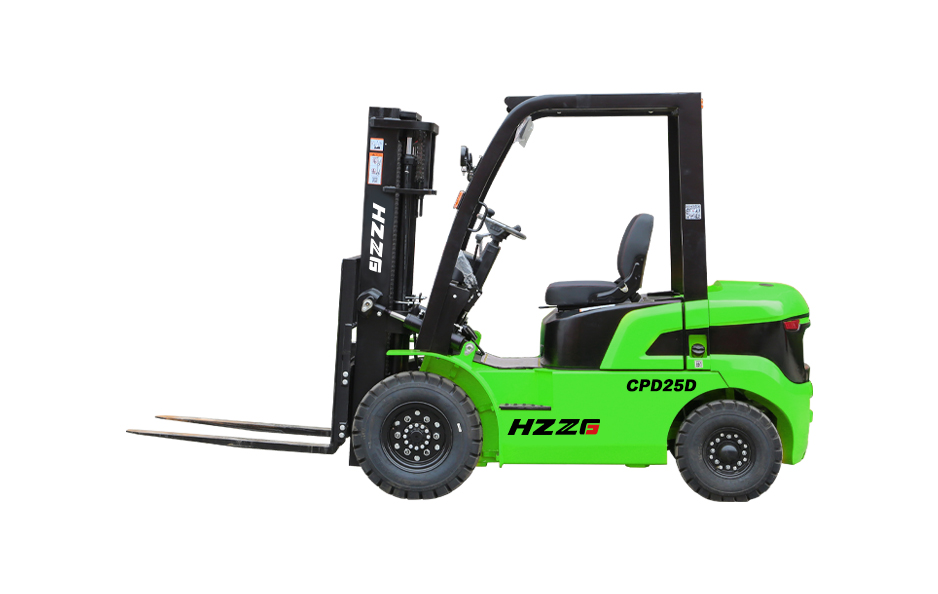

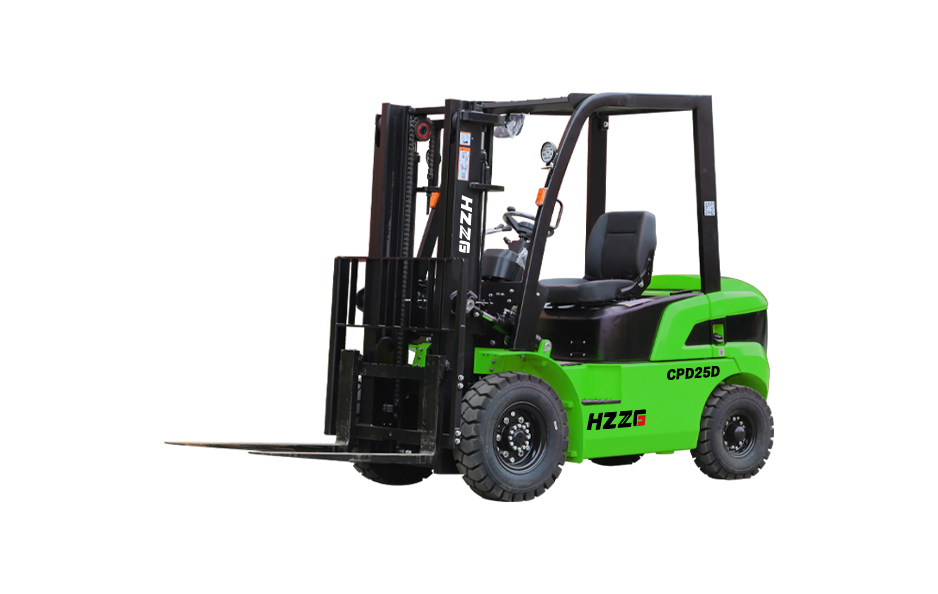

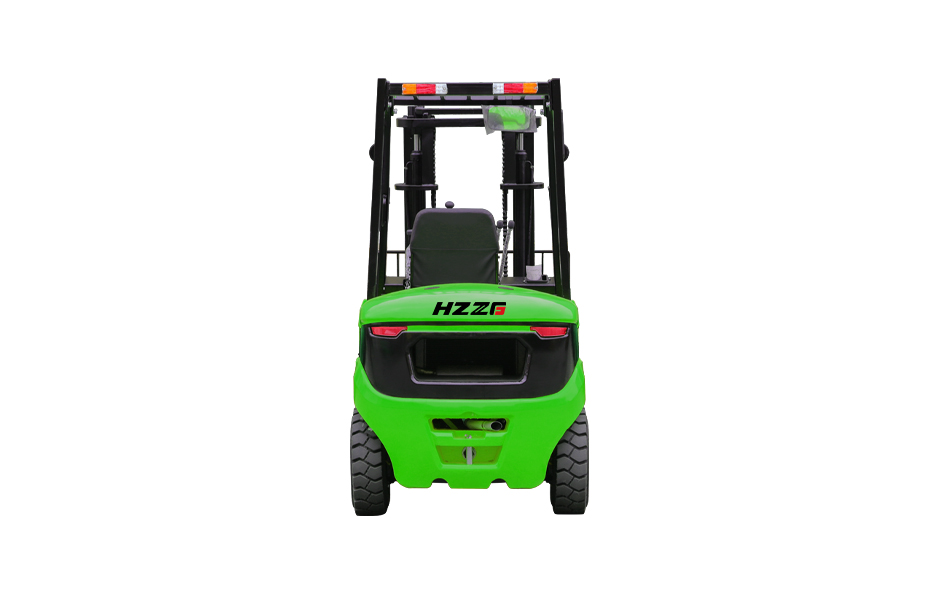

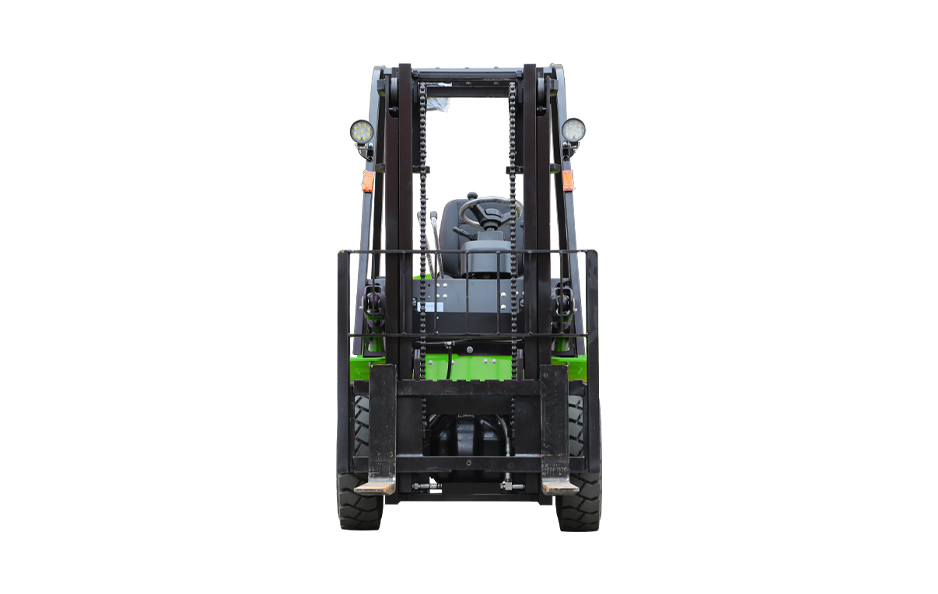

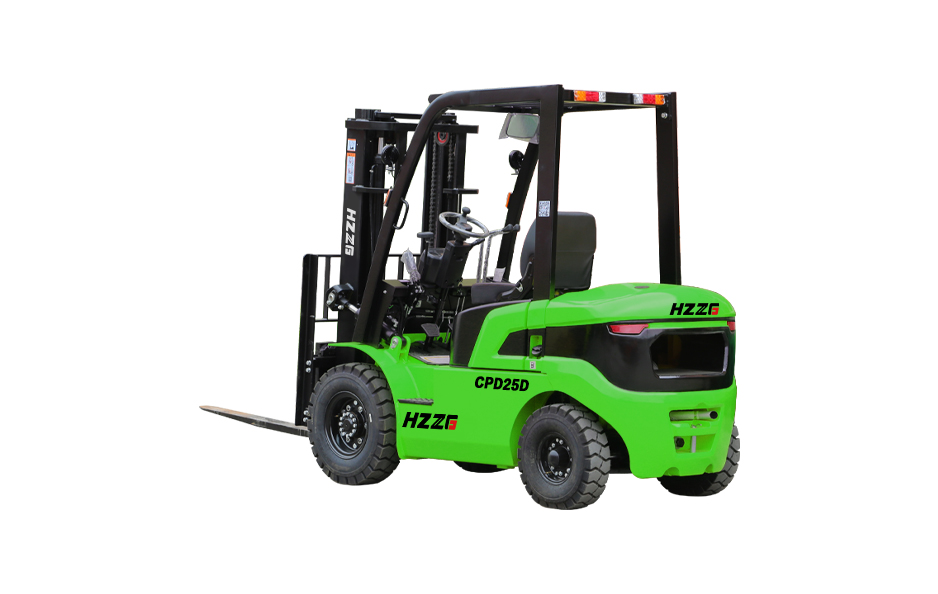

2.5Ton electric Forklift Introduction

This 2.5-ton electric forklift is suitable for cold storage, cleanrooms, warehousing and logistics, supermarket delivery, and other applications, and is not subject to environmental policy restrictions.

Our electric forklift boasts an attractive design and powerful performance. It uses lithium iron phosphate blade batteries, which are less prone to ignition during collisions and compression. It features zero pollution, zero emissions, no noise, and high energy efficiency.

We also offer various types of lithium batteries, giving you more options for extended runtime, and optional configurations such as a fully enclosed cab and air conditioning. Furthermore, we can customize different attachments to meet your needs. Whatever your requirements, we can fulfill them!

Technical Data

  QINGDAO HEZHONG MACHINERY MANUFACTURING CO.,LTD
General 1 modelo   CPD25D
2 Rated Load Capacity kilogramos 2500
3 Load Center mm (mm) 500
Dimensions 4 Lifting Height mm (mm) 3000
5 Free lifting Height mm (mm) 115
6 Fork Size LxWxT mm (mm) 1070×122×40
7 Mast Tilting Angle F/R    6/12
8 Length(without fork) mm (mm) 2540
9 Overall Width mm (mm) 1164
10 Mast Height After Mast Fall mm (mm) 2000
11 Lift Height mm (mm) 4000
12 Overhead Guard Height mm (mm) 2150
13 Turning Radius mm (mm) 2230
14 Front Overhang mm (mm) 455
15 Min. Right Angle Stacking Width mm (mm) 2280
16 Wheelbase mm (mm) 1600
17 Track Front mm (mm) 970
18 Rear mm (mm) 970
19 Ground Clearance Mast mm (mm) 115
20 Car Center mm (mm) 170
Tire 21 Front Tire   7.00-12-12PR
22 Rear Tire   6.00-9-10PR
Performance 23 Speed Travel Full Load km/h 17
24 No load km/h 19
25 Lifting Full Load mm/s 530
26 No load mm/s 550
27 Lowering Full Load mm/s 550
28 No load mm/s 450
29 Max.Drawbar Pull Full/No Load kilogramos 2000/1500
30 Max.Gradeability Full/No Load % 20/21
Weight 31 Total Weight kilogramos 3640
Potencia 32 Batería Voltage/Capacity V/AH 76.8/280
33 Controller Model/Brand   AC/MEGMEET
34 Pump Controller Model/Brand   AC/MEGMEET
35 Traction Motor Power 60min Kw 12
36 Lifting Motor Power 15min Kw 13
37 Work Pressure Mpa 14.5
38 Operating Hours H 6~8
