Diesel Forklift Sale
casa Producto CPCD-85

CPCD-85

Rated load:8500KG
Rated power:85KW
Lifting height:3000mm

Application


1,Forklift is a special equipment that can transport goods horizontally and vertically.It has comprehensive functions such as loading and unloading,lifting and transportation.

2,Forklift is widely used in mining sites, warehouses, stations, ports, airports, freight yards, circulation centers and logistics distribution centers and other industries, and even some can enter the cabin, carriage and container.

3,Forklift can load and unload parts, packaging parts, pallets, containers and other objects, stacking, short-distance handling and so on. Because it can carry different accessories, it is also widely used in road transportation, railway transportation, water transportation, and material storage and transportation, postal applications, so the range of use of forklift is very large.

Introducción

DETAILS

Resumen

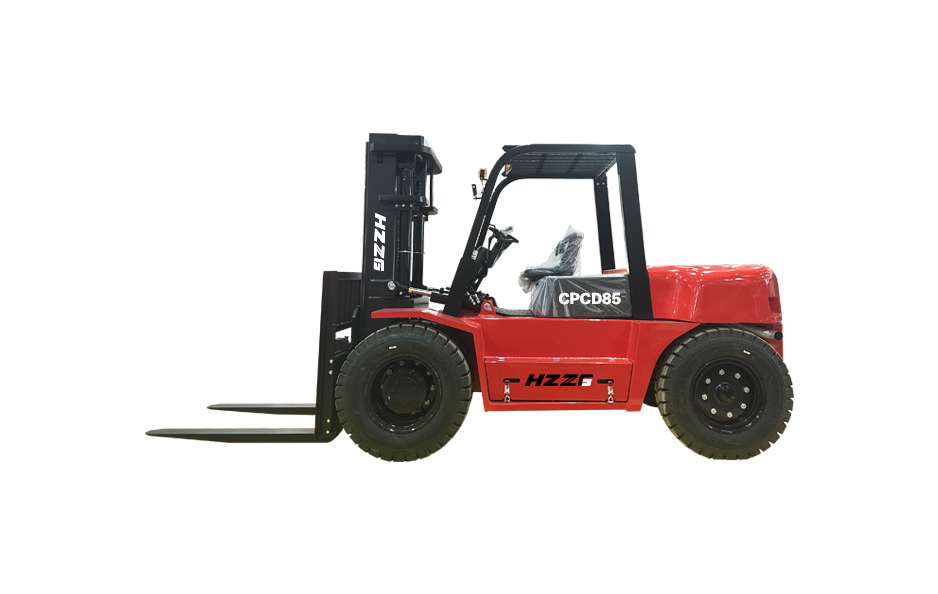

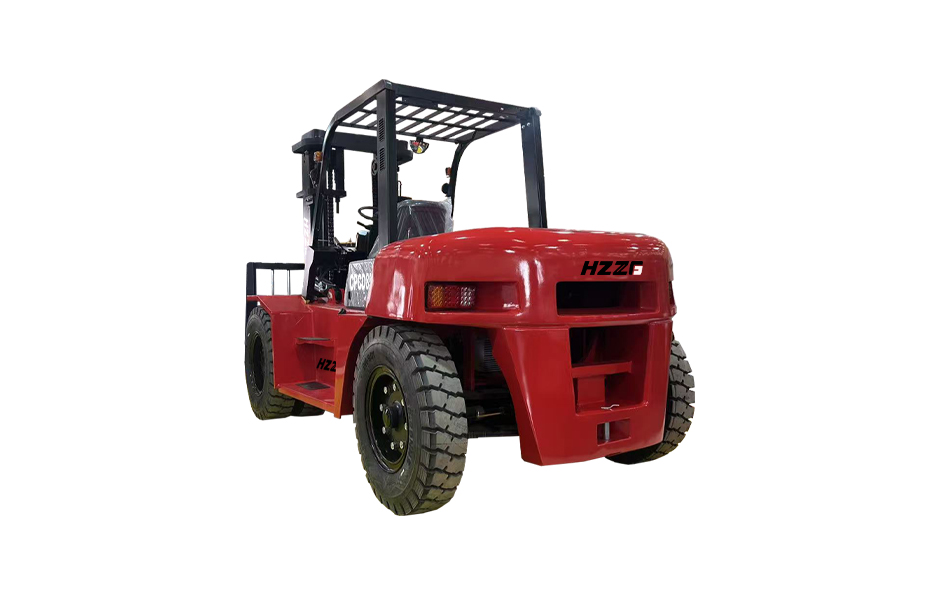

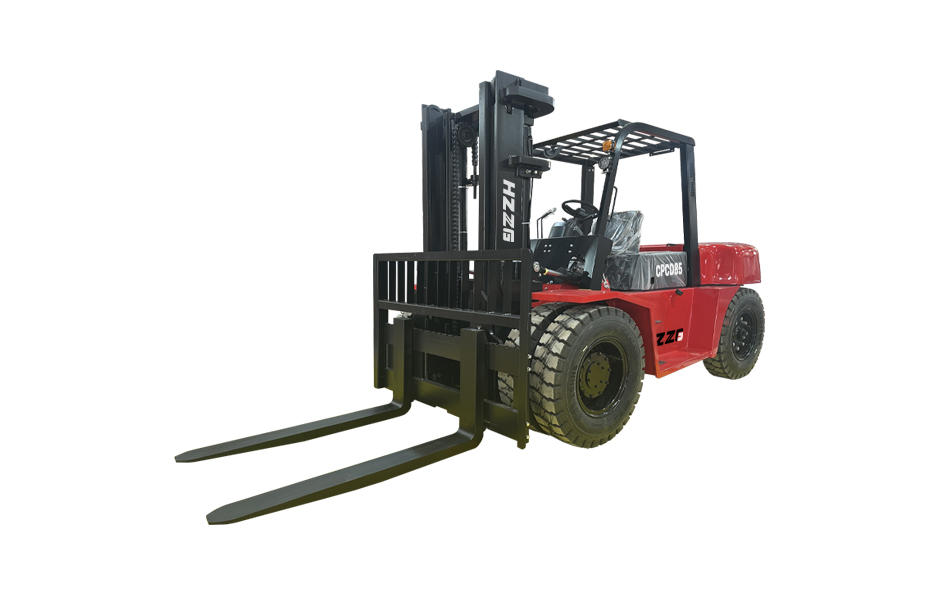

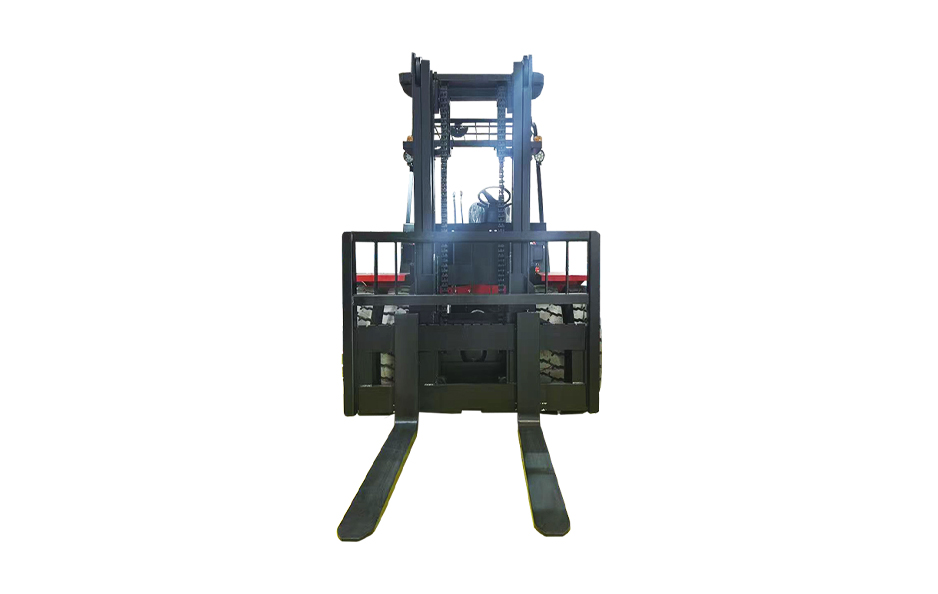

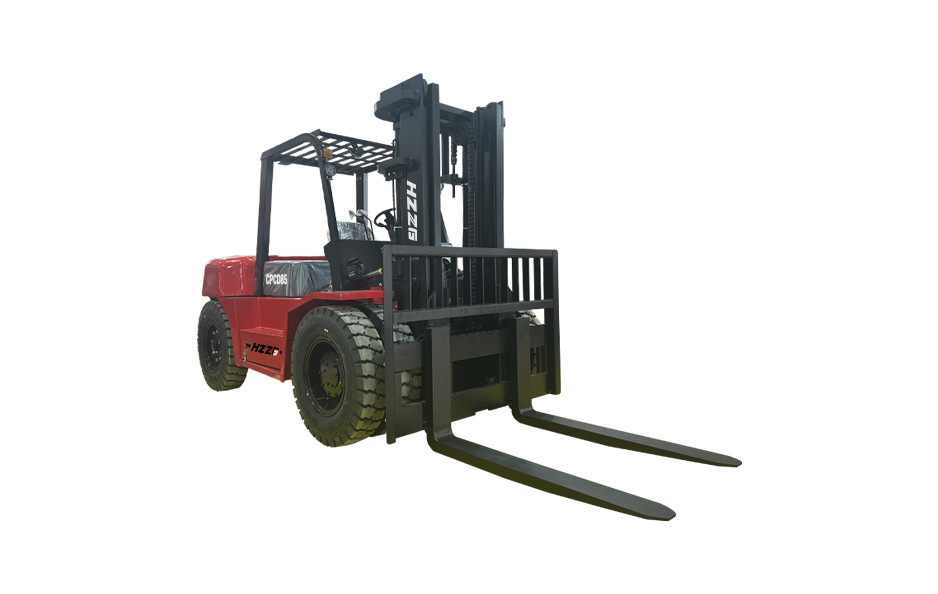

This 8.5-ton diesel forklift is designed for efficient indoor and outdoor material handling.

Equipped with a high-performance diesel engine, it provides superior torque and stable power output, ensuring excellent performance during high-intensity operations.

Featuring a reliable power system, a comfortable operating environment, and a robust safety structure, it fully complies with CE and international standards. This model is characterized by low fuel consumption, powerful performance, easy maintenance, and a long service life, making it the ideal choice for warehouses, logistics, factories, and outdoor work sites.

We also offer various optional features, such as more efficient engines, fully enclosed cabs, and air conditioning systems. Additionally, different attachments can be customized to meet your specific needs. Whatever your requirements, we can deliver!

Technical Data

General 1 modelo   CPCD8.5
Power form   Diesel FuelDiesel
Rated Load Capacity kilogramos 8500
Loader Center mm (mm) 600
Work form   Seat Type
Tire Front/Rear   Pneumatic Tire
Number of tires Front/Rear   4×/2
Features&dimensions Lifting Height mm (mm) 3000
Free lifting Height mm (mm) 180
10  Fork Size LxWxT mm (mm) 1220X170X70
11  Mast Tilting Angle F/R deg 6/12
12  Length(without fork) mm (mm) 3955
13  Overall Width mm (mm) 2164
14  Mast Hight After Mast Fall mm (mm) 2850
15  Lift Height(Shelves with shelves) mm (mm) 4410
16  Overhead Guard Height mm (mm) 2560
17  Turning Radius mm (mm) 3760
18  Front /back Overhang mm (mm) 715/755
19  Min.Rigght Angle Channel Width mm (mm) 3450
20  Wheelbase mm (mm) 2500
21  Track Front mm (mm) 1600
22  Rear mm (mm) 1720
23  Ground Clearance Mast mm (mm) 240
24  Car Center mm (mm) 250
Performance 25  Speed Travel Full Load km/h 24
26  No load km/h 30
27  Lifting Full Load mm/s 390
28  No load mm/s 420
29  Lowering Full Load mm/s 380
30  No load mm/s 350
31  Max.Drawbar Pull Full/No Load kilogramos 62000/49500
32  Max.Gradeability Full/No Load % 15/20
Weight 33  Total Weight kilogramos 11300
34  Bridge load Full Load Front kilogramos 17740
35  Rear kilogramos 2060
36  No load Front kilogramos 5080
37  Rear kilogramos 6220
Tire 38  Tire Specification Front   4-9.00-20-14PR
39  Rear   2-9.00-20-14PR
Brake 40  Brake Type Service brake   Hydraulic
41  Parking Brake   Manual
Pover&Transmission 42  Batería Voltage/Capacity V/AH 24/80
43  Motor modelo   QUANCHAI   S45-130C41
44  Rated Pover/Speed Kw/rpm 95.6/2200
45  Max.Torque/Speed N.m/rpm 540/1400-1650
46  Number of cylinders
47  Exhaust Volume CC
48  Fuel Tank Volume L 110
49  Transmission modelo   Hydraulic
50  Gear F/R   before 2/after 2
