Diesel Forklift Sale
casa Producto CPCD-15

CPCD-15

Rated load:1500KG
Rated power:40KW
Lifting height:3000mm

Application


1,Forklift is a special equipment that can transport goods horizontally and vertically.It has comprehensive functions such as loading and unloading,lifting and transportation.

2,Forklift is widely used in mining sites, warehouses, stations, ports, airports, freight yards, circulation centers and logistics distribution centers and other industries, and even some can enter the cabin, carriage and container.

3,Forklift can load and unload parts, packaging parts, pallets, containers and other objects, stacking, short-distance handling and so on. Because it can carry different accessories, it is also widely used in road transportation, railway transportation, water transportation, and material storage and transportation, postal applications, so the range of use of forklift is very large.

Introducción

DETAILS

Resumen

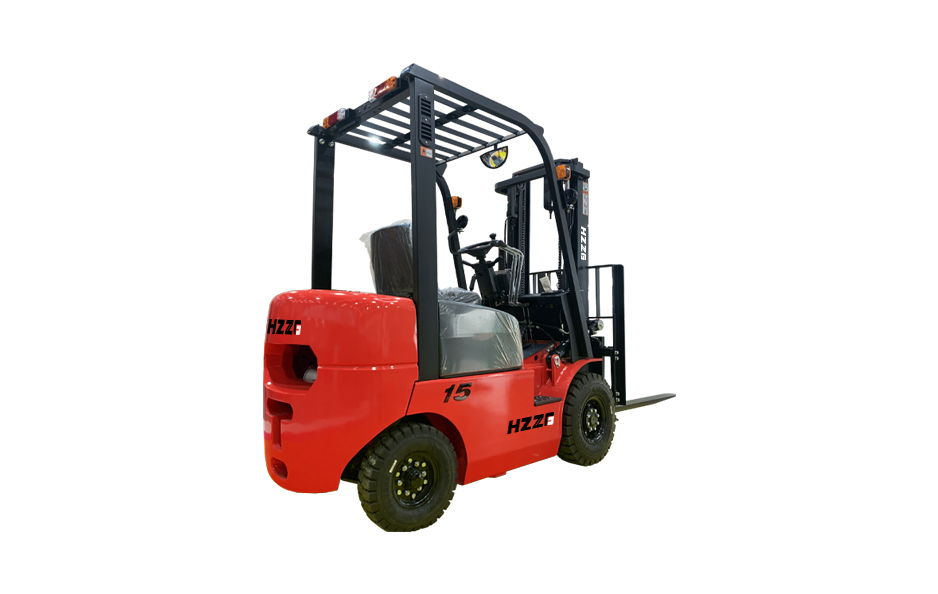

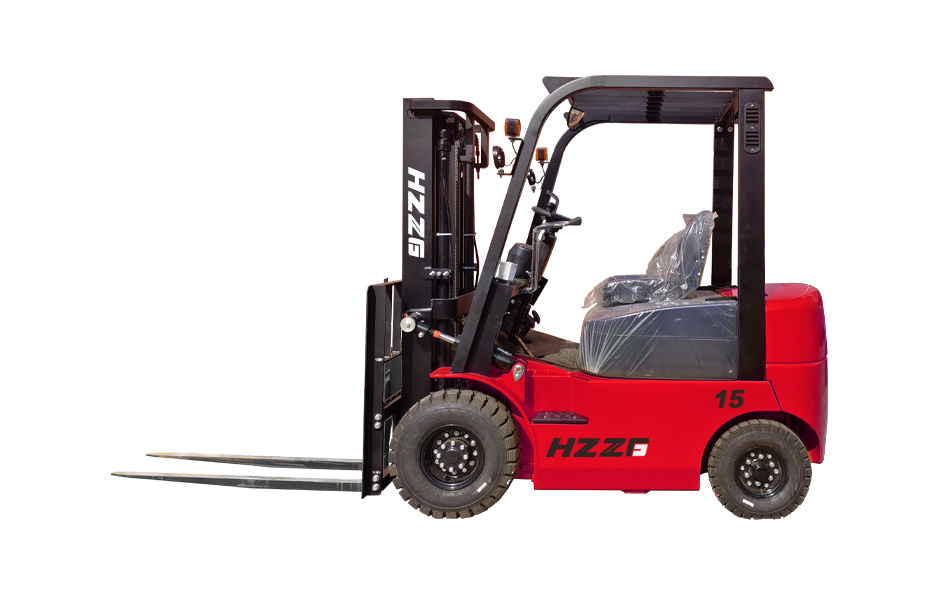

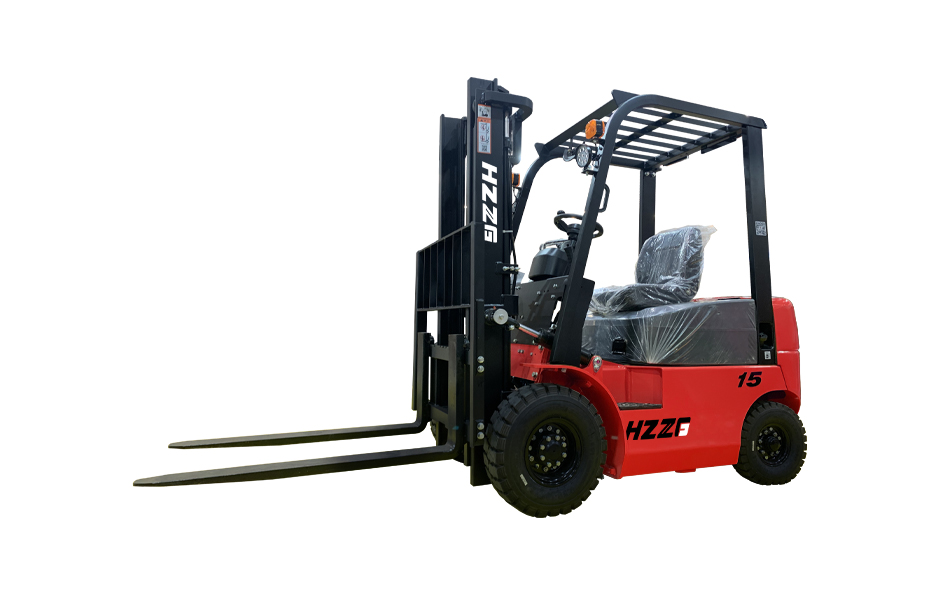

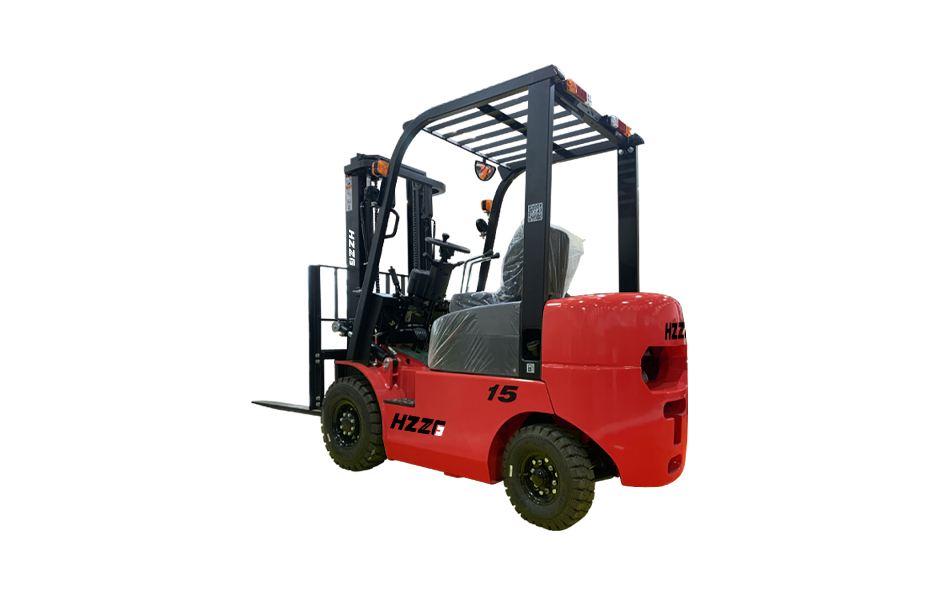

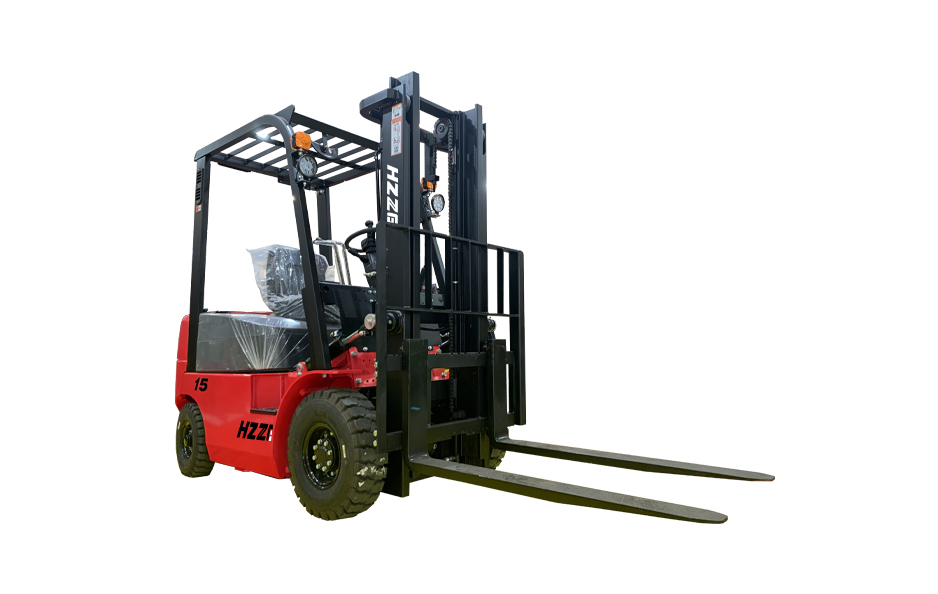

This 1.5-ton diesel forklift is designed for efficient indoor and outdoor material handling.

Equipped with a high-performance diesel engine, it provides superior torque and stable power output, ensuring excellent performance during high-intensity operations.

Featuring a reliable power system, a comfortable operating environment, and a robust safety structure, it fully complies with CE and international standards. This model is characterized by low fuel consumption, powerful performance, easy maintenance, and a long service life, making it the ideal choice for warehouses, logistics, factories, and outdoor work sites.

We also offer various optional features, such as more efficient engines, fully enclosed cabs, and air conditioning systems. Additionally, different attachments can be customized to meet your specific needs. Whatever your requirements, we can deliver!

Technical Data

General 1 modelo   CPCD 15
2 Rated Load Capacity kilogramos 1500
3 Loader Center mm (mm) 500
Dimensions 4 Lifting Height mm (mm) 3000
5 Free lifting Height mm (mm) 130
6 Fork Size LxWxT mm (mm) 1070×100×35
7 Mast Tilting Angle F/R    6/12
8 Length (without fork) mm (mm) 2210
9 Overall Width mm (mm) 1095
10 Mast Hight After Mast Fall mm (mm) 1990
11 Lift Height mm (mm) 4055
12 Overhead Guard Height mm (mm) 2070
13 Turning Radius mm (mm) 2085
14 Front /back Overhang mm (mm) 405/420
15 Min.Right Angle Channel Width mm (mm) 2280
16 Wheelbase mm (mm) 1400
17 Track Front mm (mm) 900
18 Rear mm (mm) 920
19 Ground Clearance Mast mm (mm) 110
20 Car Center mm (mm) 130
Tire 21 Front Tire   6.50-10-10PR
22 Rear Tire   5.00-8-10PR
Performance 23 Speed Travel Full Load km/h 14
24 No load km/h 15
25 Lifting Full Load mm/s 380
26 No load mm/s 450
27 Lowering Full Load mm/s 530
28 No load mm/s 500
29 Max.Drawbar Pull Full/No Load kilogramos 1030/700
30 Max.Gradeability Full/No Load % 18/27
Weight 31 Total Weight kilogramos 2710
Pover&Transmission 32 Batería Voltage/Capacity V/AH 12/80
33 Motor modelo   XINCHAI C490BPG
34 Rated Pover/Speed Kw/rpm 40/2650
35 Max.Torque/Speed N.m/rpm 157/1800
36 Work Pressure Mpa 17.5
37 Fuel Tank Capacity L 60
38 Transmission Type   Automatic
