Rated load:7000KG
Rated power:85KW
Lifting height:3000mm
Rated load:7000KG
Rated power:85KW
Lifting height:3000mm
Application
1,Forklift is a special equipment that can transport goods horizontally and vertically.It has comprehensive functions such as loading and unloading,lifting and transportation.
2,Forklift is widely used in mining sites, warehouses, stations, ports, airports, freight yards, circulation centers and logistics distribution centers and other industries, and even some can enter the cabin, carriage and container.
3,Forklift can load and unload parts, packaging parts, pallets, containers and other objects, stacking, short-distance handling and so on. Because it can carry different accessories, it is also widely used in road transportation, railway transportation, water transportation, and material storage and transportation, postal applications, so the range of use of forklift is very large.
Introduction
DETAILS
Summary

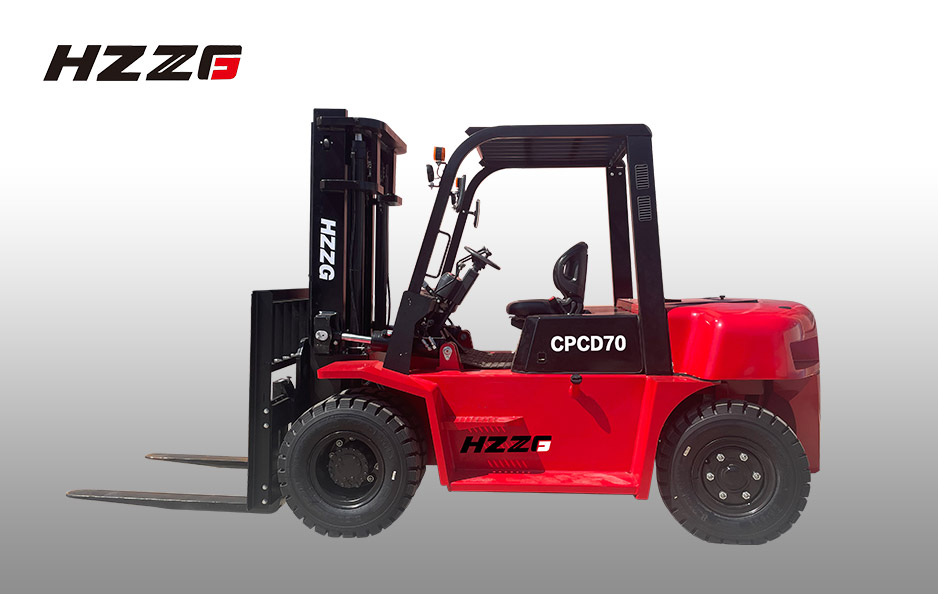

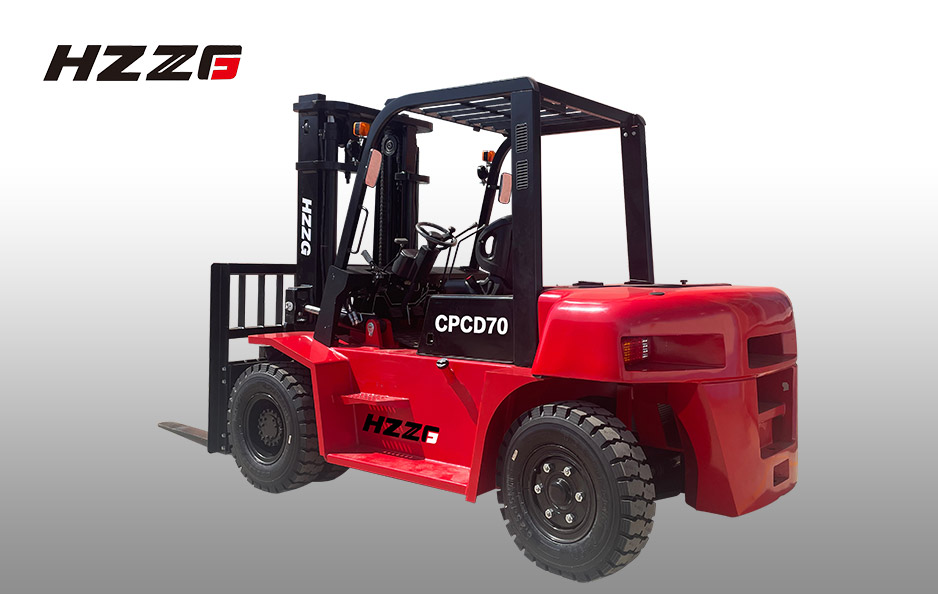

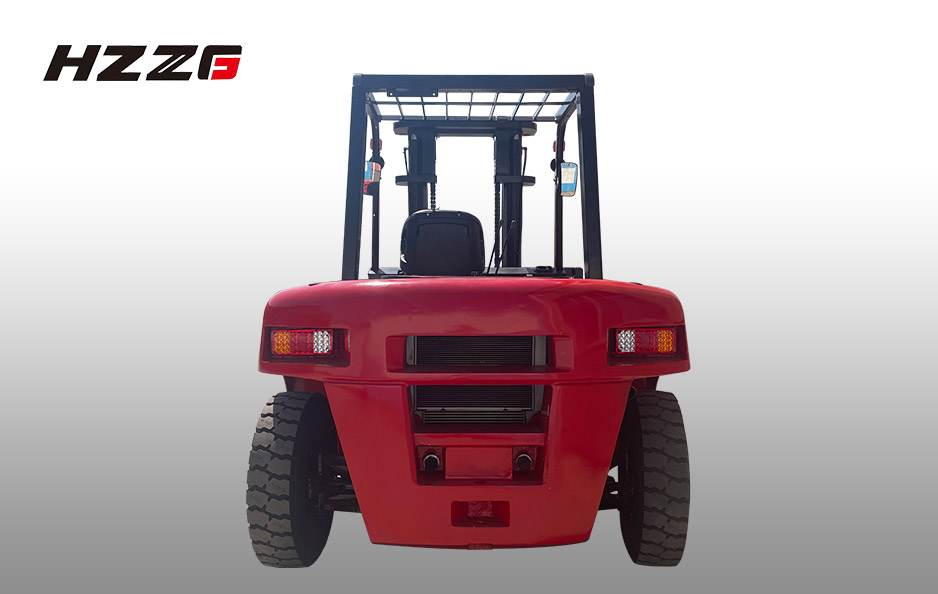

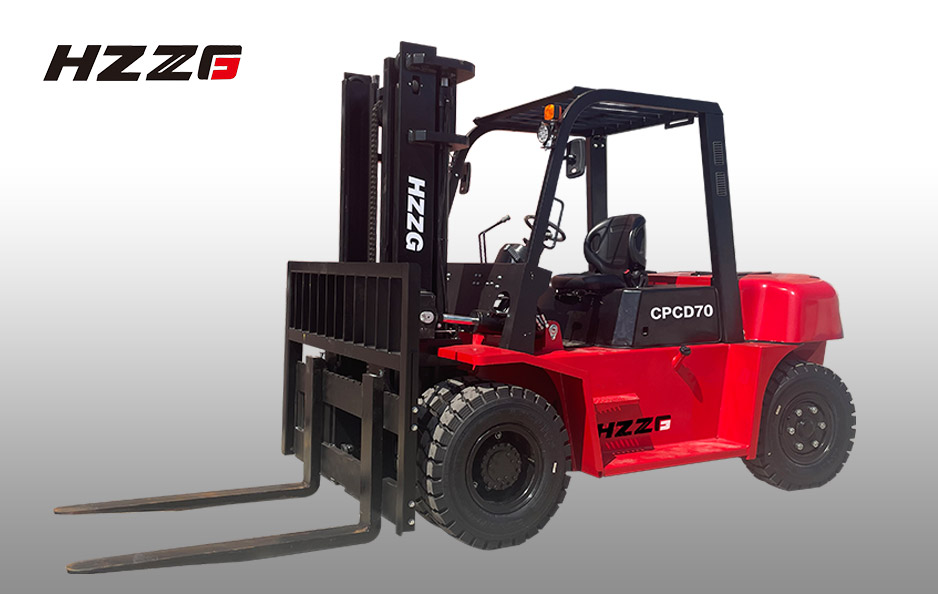

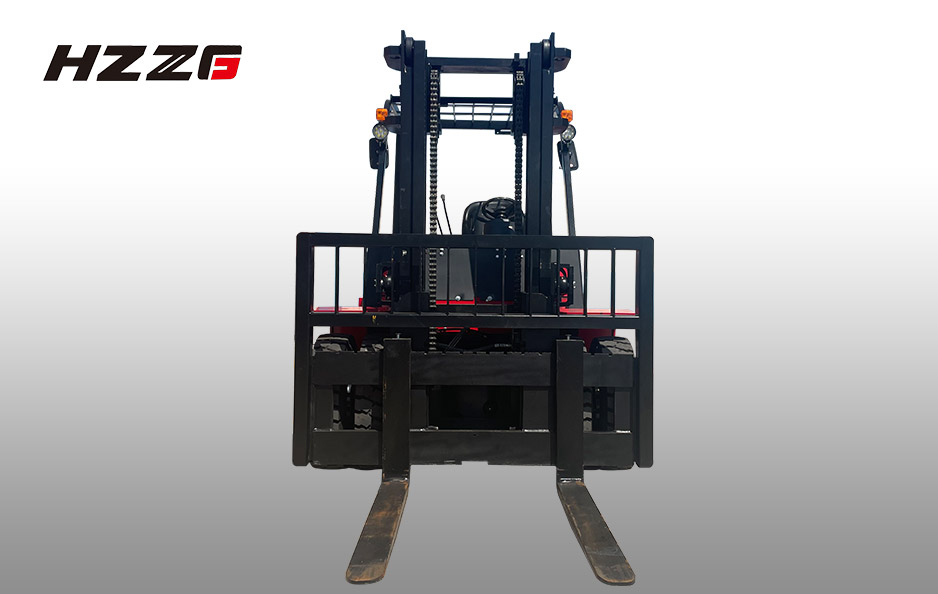

This 7.0-ton diesel forklift is designed for efficient indoor and outdoor material handling.
Equipped with a high-performance diesel engine, it provides superior torque and stable power output, ensuring excellent performance during high-intensity operations.
Featuring a reliable power system, a comfortable operating environment, and a robust safety structure, it fully complies with CE and international standards. This model is characterized by low fuel consumption, powerful performance, easy maintenance, and a long service life, making it the ideal choice for warehouses, logistics, factories, and outdoor work sites.
We also offer various optional features, such as more efficient engines, fully enclosed cabs, and air conditioning systems. Additionally, different attachments can be customized to meet your specific needs. Whatever your requirements, we can deliver!

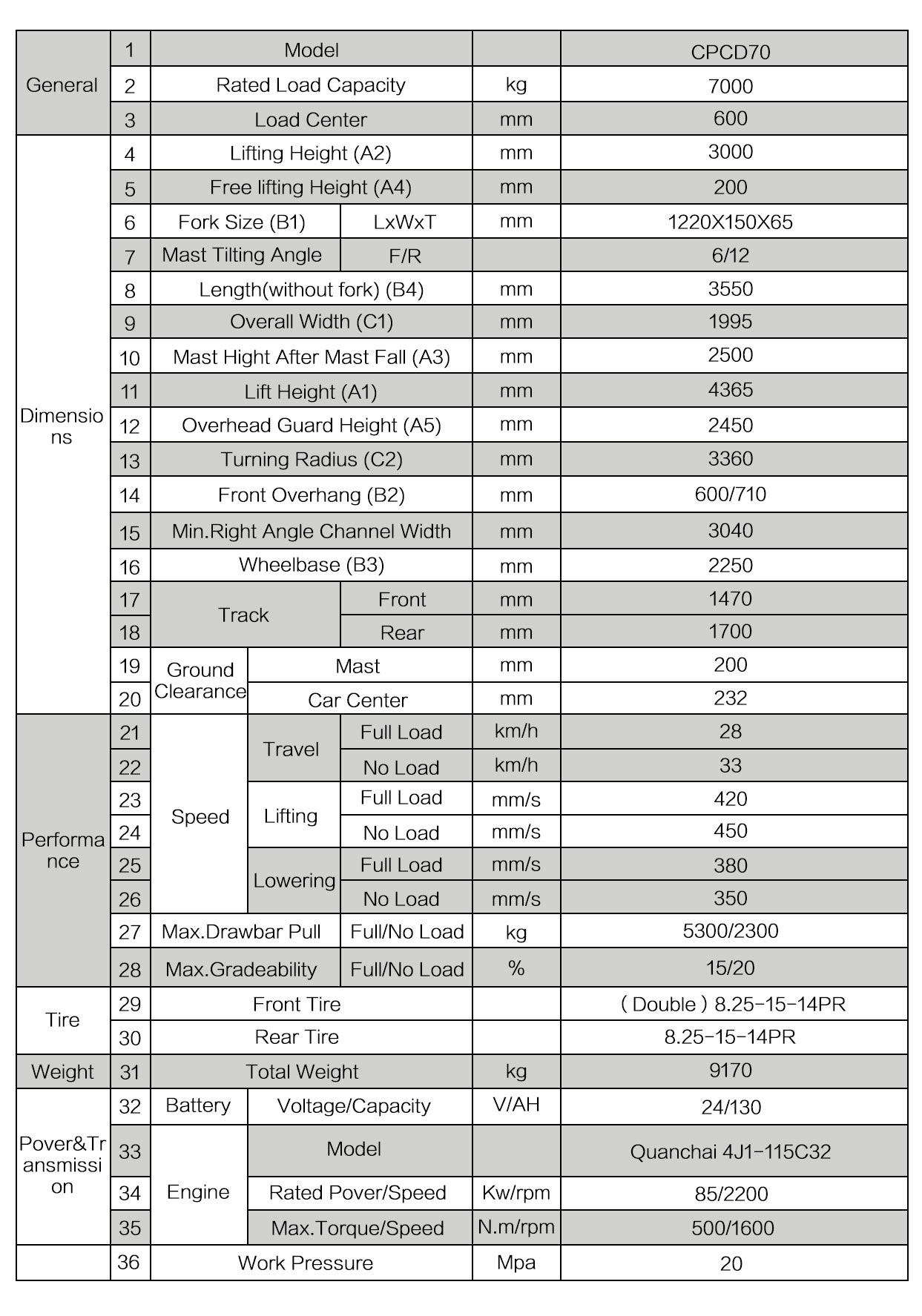

Technical Data
| General | 1 | Model | CPCD 70 | ||||||
| 2 | Rated Load Capacity | kg | 7000 | ||||||
| 3 | Loader Center | mm | 600 | ||||||
| Dimensions | 4 | Lifting Height | mm | 3000 | |||||
| 5 | Free lifting Height | mm | 200 | ||||||
| 6 | Fork Size | LxWxT | mm | 1220×150×65 | |||||
| 7 | Mast Tilting Angle | F/R | 6/12 | ||||||
| 8 | Length(without fork) | mm | 3560 | ||||||
| 9 | Overall Width | mm | 2000 | ||||||
| 10 | Mast Hight After Mast Fall | mm | 2500 | ||||||
| 11 | Lift Height | mm | 4435 | ||||||
| 12 | Overhead Guard Height | mm | 2465 | ||||||
| 13 | Turning Radius | mm | 3420 | ||||||
| 14 | Front /back Overhang | mm | 595/715 | ||||||
| 15 | Min.Rigght Angle Channel Width | mm | 3040 | ||||||
| 16 | Wheelbase | mm | 2250 | ||||||
| 17 | Track | Front | mm | 1470 | |||||
| 18 | Rear | mm | 1700 | ||||||
| 19 | Ground Clearance | Mast | mm | 200 | |||||
| 20 | Car Center | mm | 235 | ||||||
| Tire | 21 | Front Tire | （Double)8.25-15-14PR | ||||||
| 22 | Rear Tire | 8.25-15-14PR | |||||||
| Performance | 23 | Speed | Travel | Full Load | km/h | 28 | |||
| 24 | No load | km/h | 33 | ||||||
| 25 | Lifting | Full Load | mm/s | 410 | |||||
| 26 | No load | mm/s | 480 | ||||||
| 27 | Lowering | Full Load | mm/s | 420 | |||||
| 28 | No load | mm/s | 432 | ||||||
| 29 | Max.Drawbar Pull | Full Load | N | 56000 | |||||
| 30 | Max.Gradeability | Full/No Load | % | 25 | |||||
| Weight | 31 | Total Weight | kg | 9230 | |||||
| Pover&Transmission | 32 | Battery | Voltage/Capacity | V/AH | 24/160 | ||||
| 33 | Engine | Model | Quanchai 4J1-115C32 | ||||||
| 34 | Rated Pover/Speed | Kw/rpm | 85/2200 | ||||||
| 35 | Max.Torque/Speed | N.m/rpm | 500/1600 | ||||||
| 36 | Work Pressure | Mpa | 19.5 | ||||||
| 37 | Fuel Tank Capacity | L | 80 | ||||||
| 38 | Transmission Type | Automatic | |||||||
